PNEUMATIC CYLINDERS MCYL-PF1-TR1

FEATURES:

• ISO 15552 Standard
• Full interchangeability to any ISO cylinder anywhere around the globe.

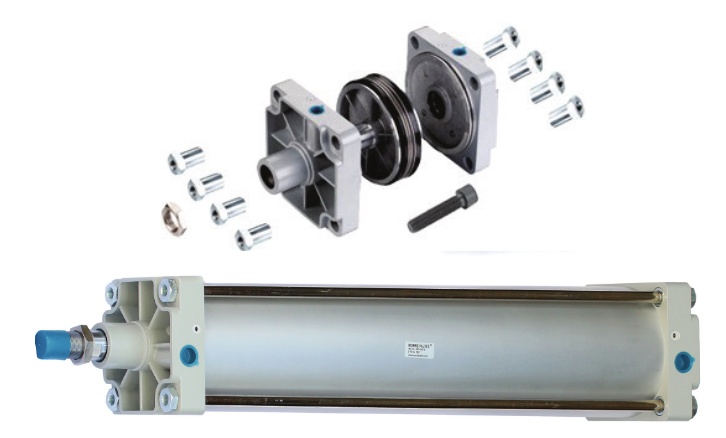

• Smooth profile or tie-rods design
• Bore sizes 32 – 320 mm
• Corrosion resistant design with end plates and barrel in sandblast and anodized aluminum
• End Covers: Aluminum Hard Anodized w/Spraying Plastic
• Magnetic piston standard
• Polyurethane seal technology inside
• Cushioning stainless steel screws on same side
• New adjustable pneumatic and mechanical
• Cushioning system reduces the noise caused by the impact of the piston on the end covers (standard)
• Full range of mountings available
• Full range of ‘drop-in’ sensors available
• Standard temperature: -20°C to +80°C
• High temperature: -10°C to +150°C
• Low temperature: -40°C to + 80°C
• Position sensing: Proximity sensor
