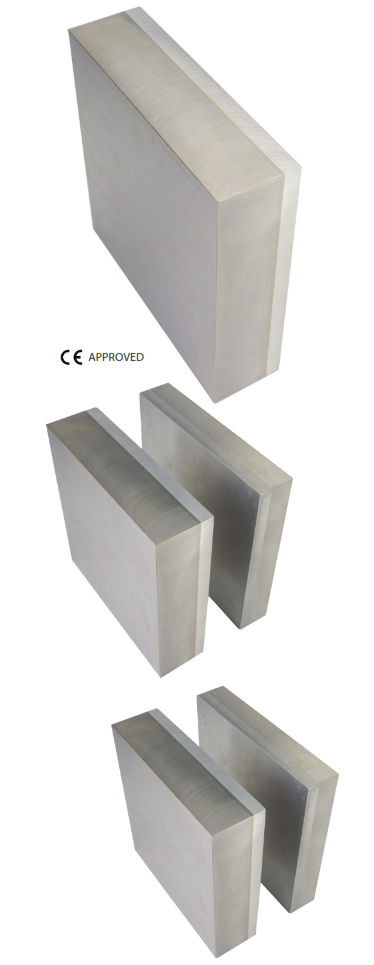

BIMETALLIC MULTI-LAYER

Description

Electrical Transition Joints
TYPE:

* ETJ-Al304-152x127x12.7/9.5
* ETJ-AlTi304-152x127x9.5/2/12.7
* ETJ- AlTi1008-152x127x9.5/2/12.7

TESTING:

• ASTM A578 (ULTRASONIC TEST)100% All Bonded Plates, 100% Welding Blocks Bonding rate. Acc.
• TENSILE STRENGTH. Acc. ISO 6892. Metal Material Room Temperature Tensile Test Method.
• SHEAR STREGTH of Welding Block
• Al-304 SST ≥ 90Mpa
• Al-Ti-304SST ≥ 95Mpa
• HEAT RESISTANCE.
• Al-304 SST ≥ 400 ºC
• Al-Ti-304SST ≥ 450 º C
• RESISTIVITY.
  When passing 6666A current at normal temperature, the voltage drop on the junction shall not be higher than 2mv, and the resistivity is 10×10-8 Ω. m.
• TOLERANCES
  The explosive welding blocks tolerance for size and thickness is ± 2 mm (1.5” ±0.08”).
  Flatness: For widths higher than 150 mm (6”), the variation from a flat surface is not greater than 1 % of the width.
  For widths within 150 mm (6”), the variation from a flat surface is not greater than 1.5 mm (0.06”).
