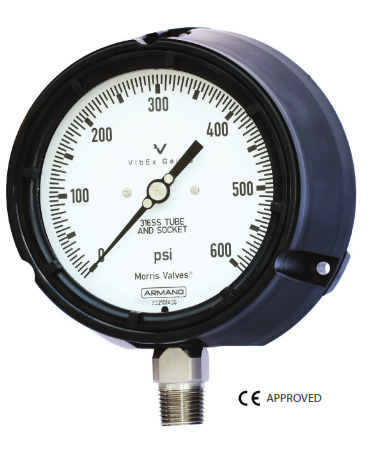

BOURDON TUBE PRESSURE GAUGE

FEATURES:

• Blow–out Device

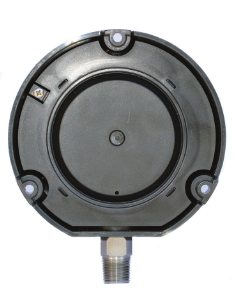

Blow-out back; when pressure increases in the case, the entire case back separates, allowing full relief

• Case Ventilation

Without ventilation, but with internal pressure compensation via pressure equalizing membrane

• Case Filling

Glycerin

• Temperature Influence

In accordance with the ASME standards, the additional error per 28 °C / 50 °F temperature deviation from the reference temperature +20 °C / +68 °F can be up to ±1 %.

• Window

Laminated safety glass

• Movement Stainless steel Dial

Aluminum white, scale black

• Wetted Parts
• Connection

1/2”MNPT lower mount (LM)

9/16-18UN for 15000psi to 60000psi

* 316L stainless steel
